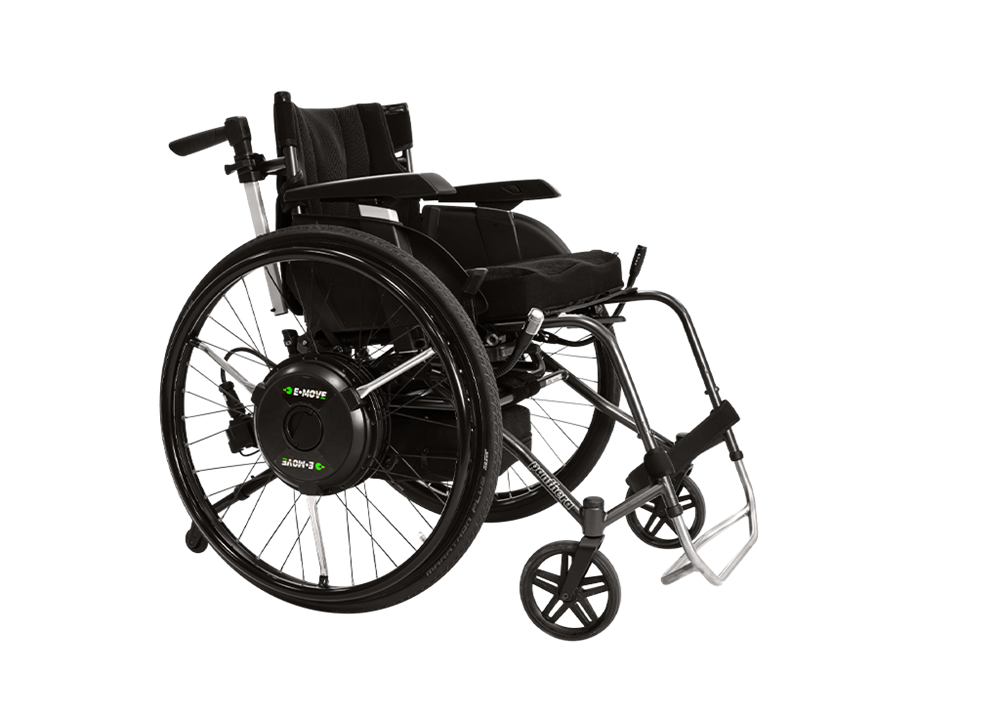

E-MOVE
E-Move transforms your manual wheelchair into a personalised mobility solution, offering powerful support with every push. It enhances movement, making long distances and obstacles easier to navigate while adapting to your unique needs. With customisable settings for arm strength imbalance, one-handed driving, pushrim sensitivity, and more, E-Move ensures smooth and effortless control. The gyro function keeps you on a straight path, even on slopes, while dual driving profiles let you switch between modes for different environments. Plus, with the ability to travel up to 20m on a single push, E-Move empowers you to go further with less effort giving you greater freedom and independence.
- Gyro Function: Keeps the wheelchair moving straight on slopes, no need for manual adjustments.
- One-Handed Use: Hemiplegia setting enables control with one hand or foot, ensuring straight movement.
- Personalized Programming: Customise settings like:
- Power (forward/backward)
- Swing and drive ring sensitivity
- One-handed control (Hemiplegia)
- Arm strength balance
- Speed settings
- Gyro activation
- Dual Driving Modes (Optional): Switch between two driving programs for different situations.
AC servomotor, 24V 110W x 2 | |
Battery type | NiMH, 24 V, 6.7 Ah, (160.8 Wh) Li-ion, 25 V, 11.8 Ah (280 Wh) |
Weight wheel | 7 kg |
Total weight | NiMh 17 kg / Li-ion 18 kg |
Increased seat width | Max 1.8 cm/each side |
Wheel dimensions | 20”, 22”, 24”, 25” or 26” |
Air pressure | 6 Bar, 600 kPa |
Speed | 0–6 km/h |
Max range (with fully charged battery) | Ca. 18km with NiMH, Ca. 30km with Li-ion, according to ISO 7176-4 |
Fuse | 30A (flat) |
Max userweight | 130 kg |
Max userweight “Heavy-duty” | 150 kg |
Max gradient | 6 degrees |
CE marking | In compliance with MDR 2017/745 class 1 |
User instructions | See usermanual |
Battery charger | 100 to 240V AC, 50/60Hz |
Power rating | 37V 26A (while charging) |
Charging time | Normal charging ca. 2–3 timmar |
E-MOVE Weight
Power add-on: 15 kg
Battery: 4 kg
Battery bag: 1 kg
Maximum total weight: 185 kg
